11kw,15kw,18.5kw,Multipurpose,green color,common rail pump test bench
Configuration Photo:
Functions of multipurpose common rail diesel injector&pump test bench:
1.testing common rail system such as BOSCH, DELPHI, DENSO those used often pumps model.
2. it can finish most of the testing and maintenance for common rial system, with good reliability and good system stability.
3.testing the oil supply quantity and oil supply pressure of common rail pump
4.testing the oil supply quantity and opening pressure of common rail injector
5.testing the uniformity of the common rail injector
6.testing the min and max oil supplu quantity of the common rail injector
7.testing the return oil quantity of injector, pressure-control
8.preset different kinds of parameter, start, idel, medium,full gas and so on.
9.software control realtime, windows operation system,display with LCD
10. it can test 6 pcs of common rail injectors in one time
parameters
1. Volume of oil tank:60L;
2. Temperature stabilization:40±20C:
3. Test oil filtering unit:5μ；
4. D.C.Supply:12v/24v；
5. Feed pressure: low:0~0.4Mpa.high:0~4Mpa;
6. Air pressure:0~0.3Mpa;
7. 3-phase power supply: 380V/50Hz or on request;
8. Flywheel inertia’s moment: 0.8 Kg.M2;
9.Center height: 125 mm;
10.Output power: 15KW or on request;
11. Overall dimensions(mm): 2300×1100×1880；
12.Net weight (KG):1300.
13 .rail pressure test: 0-1600 Bar
14.rotation speed adjustment range: 0-3500 RPM

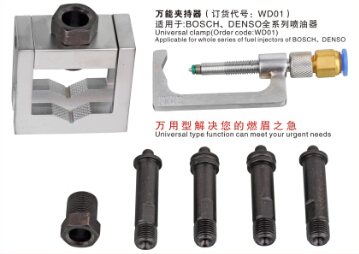

Following common rail injector clips for BOSCH DENSO DELPHI SIEMENS are free cost along with the machine:
Promotion Informations for common rail tools:
1.Buy the F-300A Multipurpose Common Rail Diesel Injector&Pump Test bench and add only 190USD,you can have the following 20pcs common rail injector dismantle tools(orginal price is 230USD)!!!!:
2.You can get the following electric maganetic valve stroke measure tools with only 120USD!(Original Price is 150USD)!!
Do not hesitate to contact with the supplier,you will get exactly the product you need with reasonable price!
